The intrinsic design of the JOVI step feeder or slat feeder is perfect for dosing and orienting revolving parts, whether in long formats: Rods, axles, pipes, etc. Short: Ball joints, bushings, pins, bolts, etc. or flat: Nuts, washers, rings, bearings, flat covers, concave covers, etc. Other types of part geometry can also be fed.
Sizes: From the mini device with pneumatic actuation and a width of 150 mm, through motorised 250, 400 and 735 mm standard measurements, to the option of special measurements of more than 2,000 mm.
Slat thickness: Slat thicknesses of 5, 10, 20 as standard, or bespoke according to need and application.
Cadence: 30 cycles/min at 50Hz.

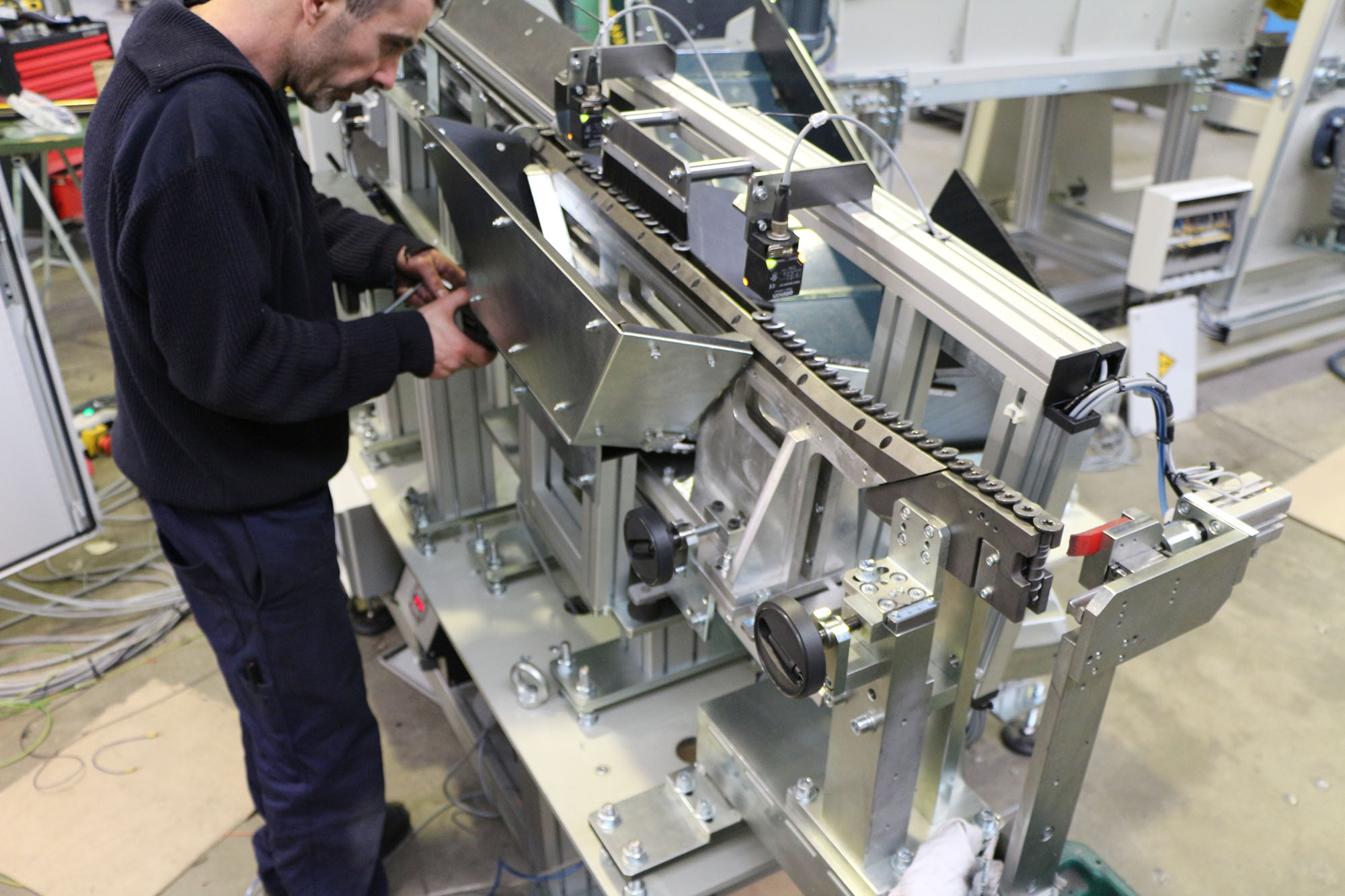

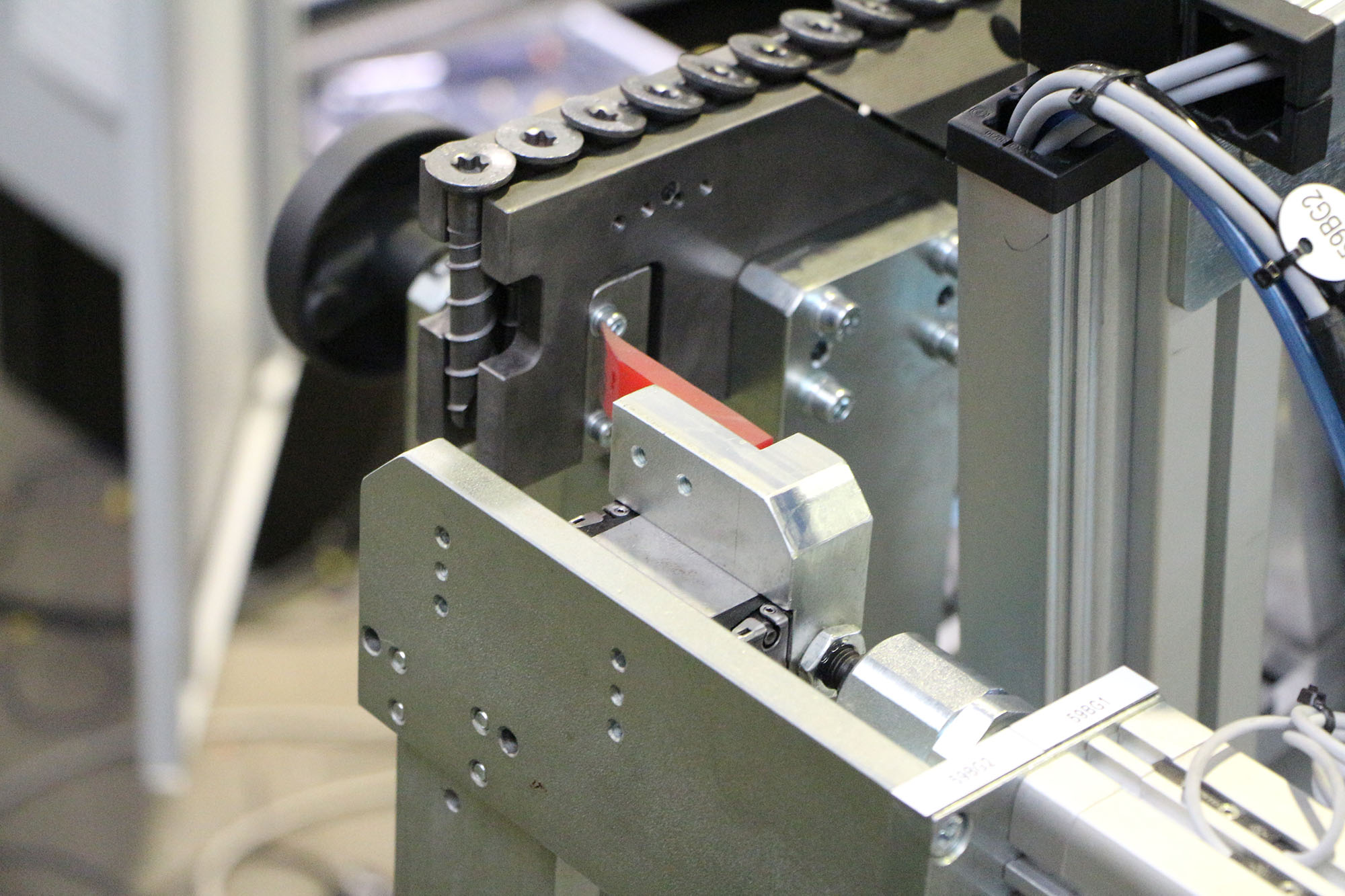

Screw feeder for quality control. Capacity to feed up to 140 screws/minute of M16x200mm size, and more than 500 small-sized screws/minute.
Ball joint and pin feeder system from a head ø of 20 to 50 mm. Ball joint positioning by means of motorised rollers and double claw manipulator to transfer.
